Set of LED displays for Zaccaria pinball machines

Description

New and complete LED display for Zaccaria pinball machines

This is a kit version to solder!

This display is a complete set (LED module and new electronic board).
The display reproduces the original look of the Zaccaria display and is suitable for all Zaccaria pinball machines.
It has a brightness regulator in order to adapt the LEDs brightness to the old displays.
It is not necessary to be an expert do assemble the display, just a good soldering machine and some passion.
A complete and detailed assembly guide is provided with the kit.

!!!NEW!!!
We are happy to announce the arrival of the new LED digit shape for the 7 digits display.
The new digit shape matches the aspect of the original 7 digits display so close that it will be difficult to see the difference between the original and our 7 digits LED display.
!!!NEW!!!

This new and complete LED display replaces the old gas display and operates with 5 volts voltage already present into the pinball machine.
You don’t have to replace all the displays since you can use both led and original displays at the same time.

IMPORTANT
You don’t have to modify anything inside the pinball, the display is plug and play and can be installed on any Zaccaria electronic pinball.

Let’s have a resume of the advantages of this display:
– brightness regulator
– a test button for testing the led segments
– a micro-switch in order to select the right display position inside the pinball machine
– No more nasty 190v High Voltage
– Very low current usage, no worries for your 5v power regulator
– Easy to assemble, very basic knowledge is enough to do the job
– Plug&Play – no modifications needed on your old pinball machine
– Beauty black finish
– Designed in Europe
– 2 years warranty
– Light shield foams (new!)

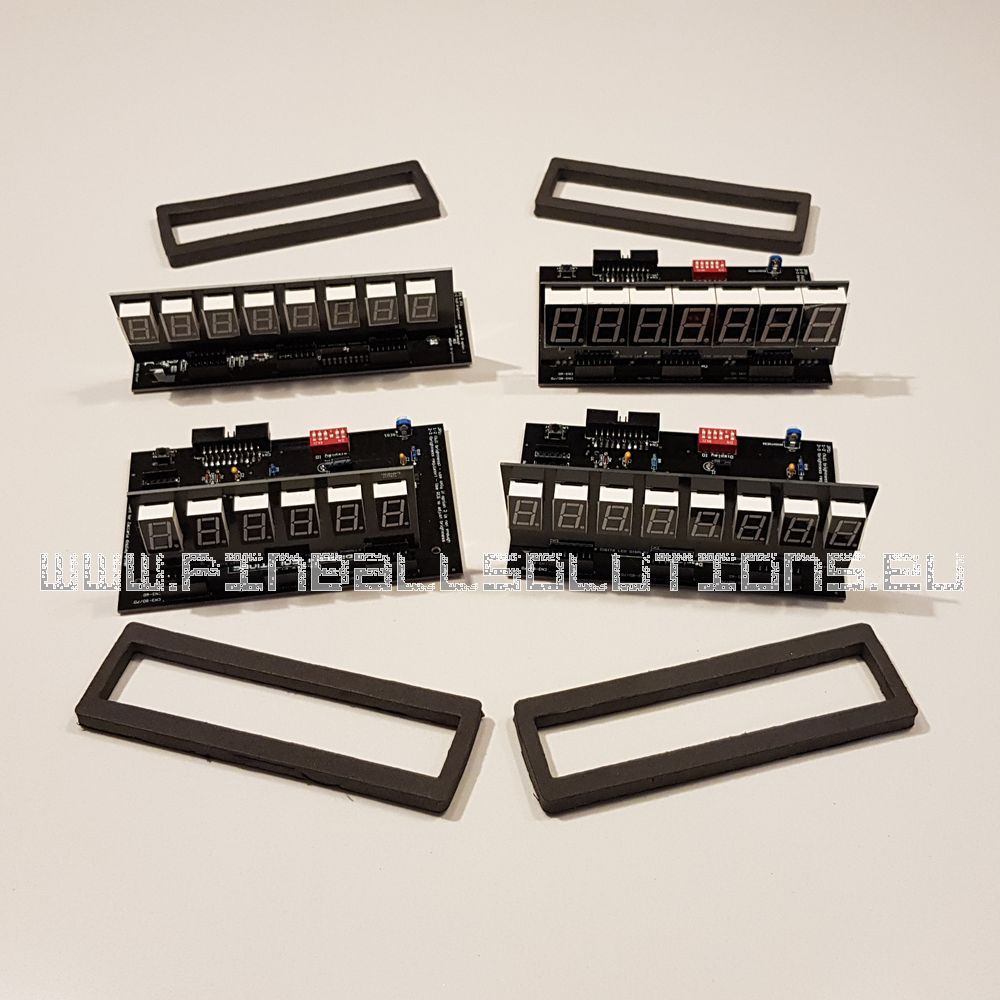

The complete display is composed by the electronic board and one LED module.

In order to keep the price as low as possible those displays are sold in DIY kits very easy to assemble and solder.

Set types

6 x 6 Digits (Gen 1):
Future World, Earth Wind Fire, Space Shuttle, Fire Mountain, Shooting the Rapids, Winter Sports, Star God, House of Diamonds, Hot Wheels, Locomotion

5 x 8 Digits (Gen 2):
Soccer Kings, Pinball Champ ’82

5 x 7 Digits (Gen 2):
Devil Riders, Pinball Champ 7 digits, Farfalla, Time Machine

5 x 8 Digits (Gen 2 – Others):
Magic Castel, Robot, Black Belt, Clown, Mexico 86, Pool Champion, Stars Phoenix, Spooky, Zankor



In addition to the basic kits to solder you can choose between the “Partially assembled” and the “Fully assembled” version.

Partially assembled:
– The electronic boards are fully assembled and soldered (except for the brightness potentiometer);
– Brightness regulators (potentiometer) need to be soldered on the main boards (not mandatory as the displays work at full power without the potentiometer);
– ICs need to be installed on the sockets present on the boards;
– The LED modules need to be assembled and soldered (LEDs + connecting headers);
– Cheaper than fully assembled and very easy to solder and assemble.

Fully assembled:
– The displays arrive fully assembled and ready to use (Plug & Play).
– Consider a shipping delay between 7 and 10 days.
