LED display for Williams / Data East pinball machines DB-12232

Description

This board replaces the original 16×2 digits gas display Williams model D-12232, D-12232-1, D-12232-2 and Data East 520-5030-00 with its LED technology.

The DB-12232 is Plug & Play and easy to install.

Advantages & Features:
– Low power consumption (works with internal 5v power)
– No High Voltage anymore
– Long-lasting led displays
– Adjustable brightness
– Plug & Play installation
– Only alphanumeric led displays for better global aesthetic
– Beauty black finish
– Simple design using common components
– No more nasty UDN7180A
– All ICs socketed for easy replacement
– Designed in Europe
– 2 years warranty
– Light shield foams

This board is compatible with the following games:

Williams:
– Bad Cats
– Black Knigth 2000
– Diner
– Earthshaker
– Jokerz

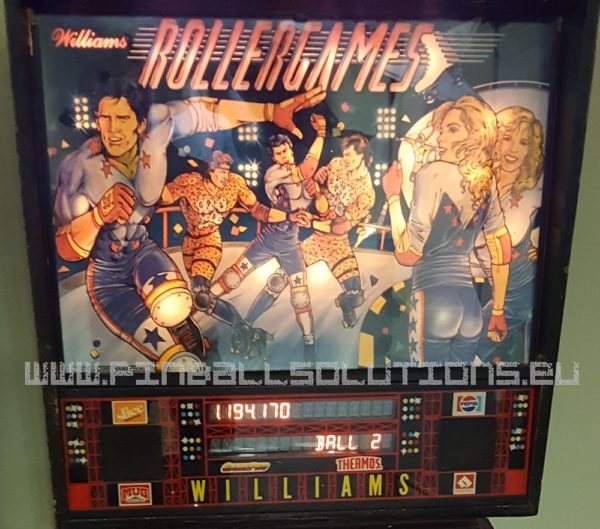

– Rollergames

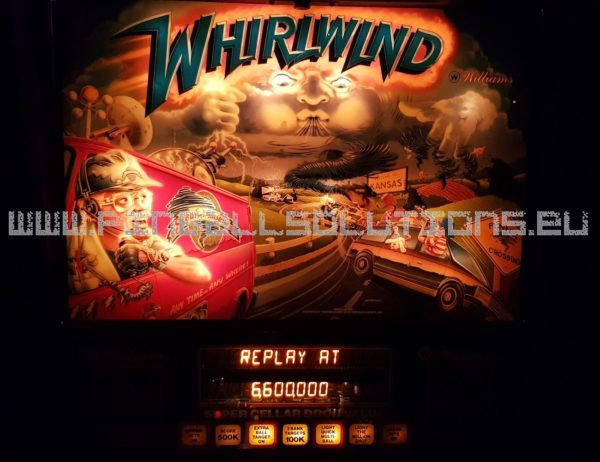

– Whirlwind

Data East:
– Monday Night Football
– Back to the Future
– Phantom of the Opera
– Robocop
– The Simpsons

This display can also be used in the following models:

Williams:
– Police Force *
– Taxi *
– Riverboat Gambler **

* needs additional module not included in this display.

IMPORTANT:
This board is unique because can be used in any of these pinball machines using a 2×16 digits display no matter if Data East or Williams.

Williams System 11B & 11C
